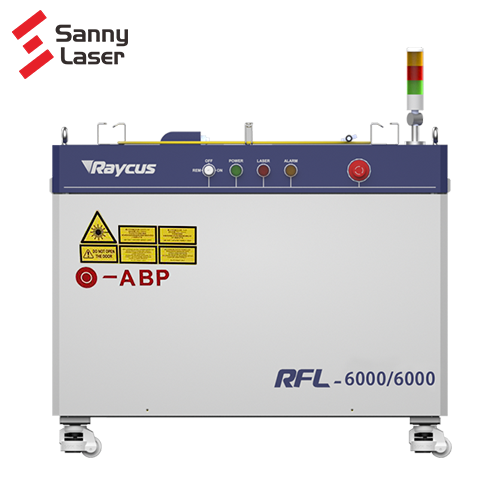

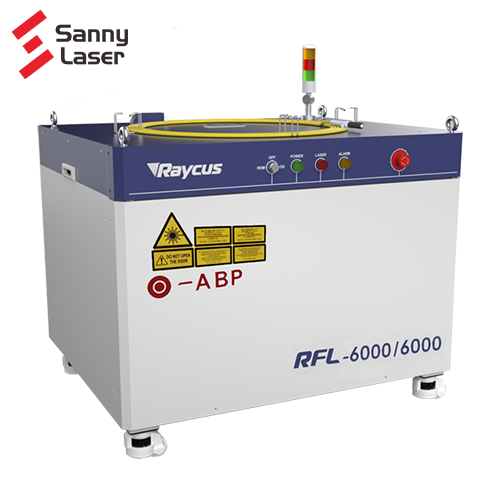

6000W ABP Welding Fiber Laser RFL-ABP

Name: 6000W ABP Welding Fiber Laser RFL-ABP
Brand: sannylaser.com
Availability: InStock
Rating: 5 (1 reviews)

Raycus 2020's new-generation variable beam laser RFL-ABP (Adjustable Beam Profile) fills the gap in domestic fiber laser beam mode adjustable technology. Using the customized optical fiber combiner developed by Raycus, different modes of output such as Ga

INQUIRY

Description

Technical characteristics

Full fiber structure, stable and reliable
The optical module is independently coupled into the core layer and ring core layer of the output fiber
The power of the core/ring core can be adjusted independently, and the power switching time is short (on the order of milliseconds)
With waveform editing function

Optical Properties

Analog response time: ≤100μs
Total output power: 12000W
Center power: 6000W
Ring power: 6000W
Core diameter: 50/100μm
Ring core diameter: 150/300μm
Center beam quality: ≤2.5/5 mm×mrad
Annular beam quality: ≤9/18 mm×mrad

Output characteristics

Output cable length: 20m (customizable)

Advantages of circular spot processing

Power of center spot and ring spot
Independently adjustable welding
Spatter-free weld seam formation is stable and consistent
The molten pool is larger and more stable, and the temperature gradient is small

Application of 6000W ABP Welding Fiber Laser RFL-ABP

Lithium battery industry
Electronic Component
Car manufacturer
