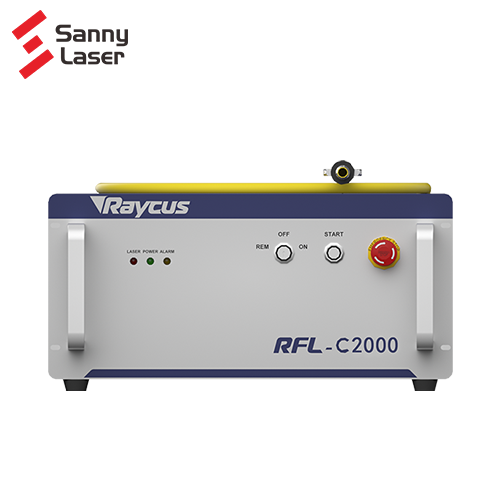

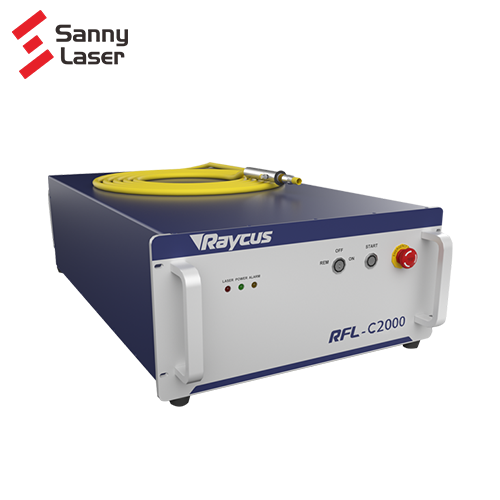

2000W Single Module CW Fiber Laser RFL-C2000X

It has the advantages of high electro-optical conversion efficiency, good beam quality, high energy density, wide modulation frequency, strong reliability, long life, and maintenance-free operation. It can be widely used in welding, precision cutting, cla
Description
Technical characteristics
  • High electro-optical conversion efficiency
  • Output fiber length can be customized
  • QBH/QD connector
  • Maintenance-free operation
  • Wide modulation frequency range
  • Small size, easy to install

Optical properties
  • Average output power: (W): 2000
  • Central wavelength: (nm): 1080±5
  • Maximum modulation frequency: (kHz): 5
  • Output power stability: ±1.5%
  • Red laser: Yes

Output characteristics
  • Output connector: QBH (customizable)
  • output fiber core diameter (μm): 50 (customizable)
  • beam quality:5-7
  • polarization state: random
  • output fiber length (m): 20(customizable)

Electronic control characteristics
  • Input power (V AC ): 380±10%, Three Phase-four Wire Connect
  • Control mode: RS232, AD
  • power adjustment range (%): 10-100

Other characteristics
  • Dimensions (mm ): 900*447*521(handle included)
  • Weight (kg): <70
  • Cooling method: water cooling
  • Working temperature (℃ ): 10-40



Application of 2000W Single Module CW Fiber Laser RFL-C2000X
  • Precision Cutting
  • Metal Welding
  • Sheet Metal Piercing
  • Metal Carving
  • Surface Treatment
  • 3D Printing/Rapid Prototyping
