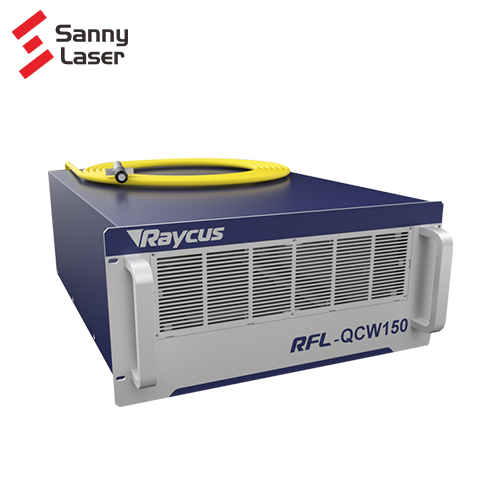

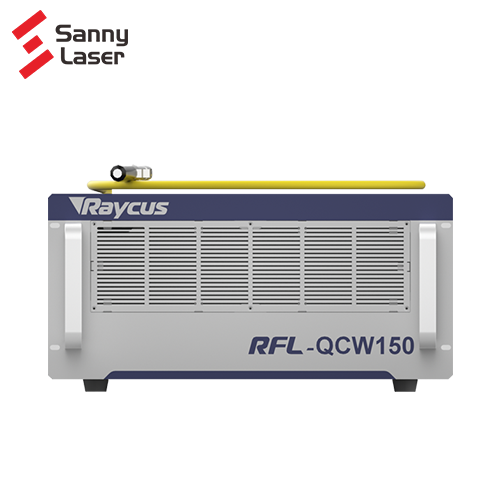

150W QCW Fiber Laser RFL-QCW150/1500

Name: 150W QCW Fiber Laser RFL-QCW150/1500
Brand: sannylaser.com
Availability: InStock
Rating: 5 (1 reviews)

The QCW fiber laser series developed by Raycus ranges from 75W to 300W, with higher electro-optical conversion efficiency, better optical quality and lower maintenance cost.

INQUIRY

Description

Technical characteristics

Two Work Modes：Continuous and Pulse
Peak Output 3000W
Extremely Stable Output Performance
Excellent Light Beam Quality
QBH Output Connector and Optional Output Length
Air-Cooled Heat Dissipation

Optical Properties

Average power(CW) (W): 250
Average power(Pulse) (W): 150
Max.Output Power(W): 1500
Max. Pulse Energy(J): 15
Central wavelength: (nm): 1080±5
Repetition Frequency(Hz): 0-5000
Pulse Width(ms): 0.05-50
Output power stability: ±1.5%
Red laser: Yes

Output characteristics

Output connector: QBH
output fiber core diameter (μm): 12,25,50
BPP（mm.nrad) : 0.4,0.5,1.5

Electronic control characteristics

Input power (V DC ): 48
Control mode: RS232/AD/ Ethernet
power adjustment range (%): 10-100

Other characteristics

Dimensions (mm ): 420*190*485(handle included)
Weight (kg): <40
Cooling method: Air-Cooled
Working temperature (℃ ): 0-40

Application of 150W QCW Fiber Laser RFL-QCW150/1500

Alternative of Light-Pumped YAG Lasers
Spot/Seam Welding
Ceramics Cutting
Precision Welding /Cutting
Electronic Parts Processing
Power Battery Welding
Soldering
PCB Welding
