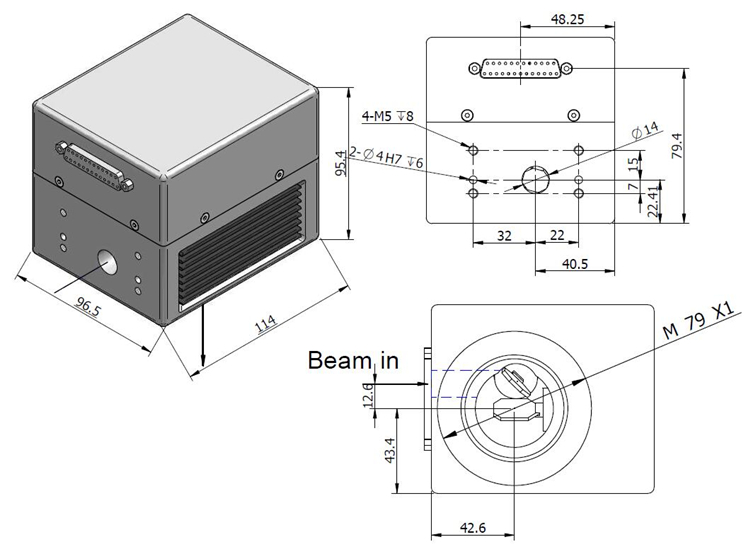

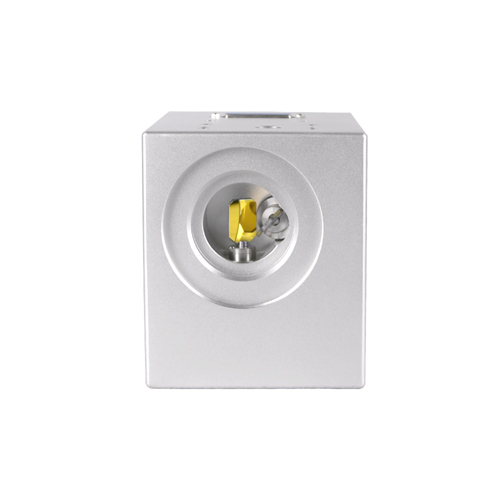

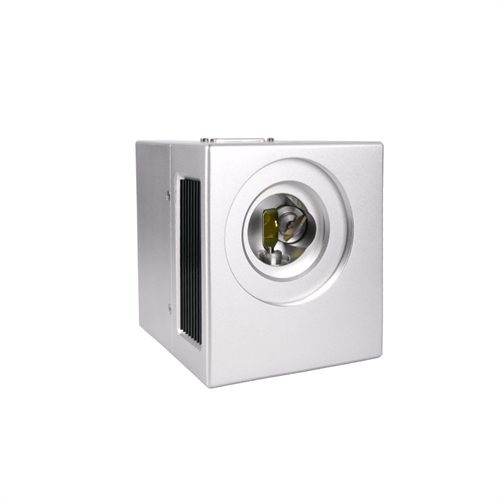

10mm US-A series galvo scan system
10mm US-A series galvo scan system 10mm US-A series galvo scan system 10mm US-A series galvo scan system 10mm US-A series galvo scan system

10mm US-A series galvo scan system

Item No.: SL-US10A1
Suitable for precision marking and welding.
INQUIRY
Description

Sannylaser galvo scan system SL-US10A1

the input aperture is 10mm (compatible with 1064nm 355nm 532nm 10.6um lenses ), uses fully self-developed driver and motor. High speed, small size, low temperature drift, high reliability, suitable for precision marking and welding.


Parameters details:


 Model  SL-US10A1
 Input Beam Aperture (mm)  10
 Beam Displacement  (mm)  12.54
 Tracking Error (ms)  0.18
 Repeatability (µrad)  <2
 Offset Drift (µrad/K)  <17
 Gain Drift (ppm/K)  <16
 Long-term drift over 8 hours (mrad)  <0.3
 1% of full scale (ms)  0.4
 10% of full scale (ms)  1.2
 Positioning Speed (m/s)  10
 Typical Scan Angle (°)  ±12.5
 Gain Error (mrad)  <5
 Zero Offset (mrad)  <5
 Nonlinearity (%)  <0.1
 Power Requirements  ±15VDC, ≥3A
 Digital Interface  XY2-100
 Operation Temperature (℃)  25±10
 Weight (kg)  1.9
